Status Lights

Each Bottango control board has a number of status lights to help troubleshoot and identify current status.

Servo / Speaker Power Status

Bottango Solar and Nova have a barrel jack DC power input for powering servos (and speakers on Bottango Solar). The status light is in the center of each board, near the servo headers. When power is not plugged in or functioning, the light is off. When it is in AND the control board is also powered, the servo/speaker power light will pulse.

Connection / Data / User Status

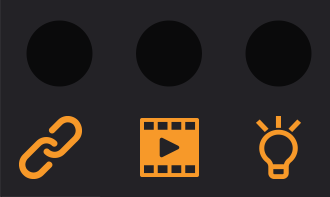

At the top of all boards are three lights.

• The first light with a “link” icon shows the status of the connection of the board to its data source, and the kind of connection.
• The second light with a “movie clip” icon shows the status of the data input into the board.
• The third light with a “light bulb” icon is unused as a status light for troubleshooting. Instead it can be used for your own use cases. See the full Bottango control board documentation for more details.

Default USB connection

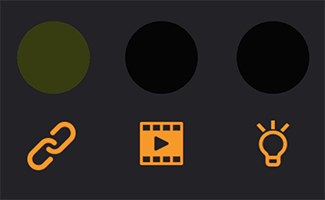

In each board’s default state, it looks for a connection over USB to the desktop Bottango application. While waiting for that connection, the connection light will pulse yellow quickly twice, then fade back down slowly.

Once connected, the connection light will pulse green on and off slowly. As well, each time data or commands are received from the computer, the “data” light will quickly pulse white.

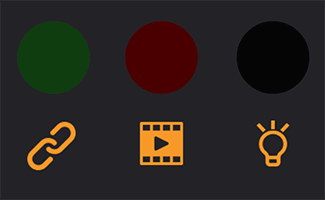

Audio Playback SD Card Error

If attempting to play audio on your Bottango Solar, and the board doesn’t see the SD card, or the SD card is missing the required audio file. The data light will glow red. This is true in wireless mode as well, just with a different color light on the connection light.

Wireless Connection

Once set up to connect wirelessly to Bottango Nova, Bottango Solar will flash a blue light instead of a yellow light on the connection light until it is connected.

Once connected wirelessly, the connection light will pulse green on and off slowly, the same as a USB connection. The data light behaves the same as well.

Playing Exported Animations

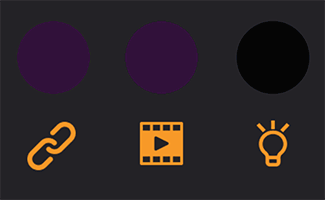

When switched to playing exported animations, the connection light will glow purple.

When an exported animation is currently being played, the data light will glow purple as well, and flash white as exported animation commands are executed.

If in exported animation mode, but there is a problem reading the SD card or finding an expected animation file on the SD card, the data light will glow red.
